| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | BAXIT |
| رقم الموديل: | BXT-BT-150/BXT-BT-300/BXT-BT-1L/BXT-BT-2L/BXT-BT-5L/BXT-BT-10L/ |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | US$4340-20800/unit |
| تفاصيل التغليف: | صندوق الكرتون/صندوق خشبي |
| وقت التسليم: | 5-8 يوم عمل |
| شروط الدفع: | L/C,D/A,D/P,T/T,ويسترن يونيون,MoneyGram |
| القدرة على العرض: | 10000 جهاز كمبيوتر شخصى |
| النموذج: | BXT-BT-150 | أقصى قدرة التحريك （تركيبات قابلة للتخصيص مع قدرات معالجة مختلفة）: | 5ML-150ML*كوب واحد （مع حاوية 300 مل） |
|---|---|---|---|
| طريقة العمل: | الفراغ ، الثورة ، الدوران ، التناوب إلى الأمام والعكس ، وضع خلط غير الاتصال | سرعة الثورة: | 200 - 2000 دورة في الدقيقة (قابلة للتعديل) |
| سرعة الدوران: | 200-2000 دورة في الدقيقة (متزامنة مع سرعة المدارية) | نسبة السرعة الدولية المدارية: | 1: 1 (غير اختياري) |
| وقت الركض: | 0-30 دقيقة (قابل للتعديل) | تجويف العمل: | تحريض على واحدة |
| حجم الجهاز: | 520*590*450 (مم) | الوزن: | حوالي 85 كجم |
| درجة الفراغ: | ﹣98kpa لا يمكن ضبط/ جهاز فراغ خالٍ من الزيت المدمج | بيئة قابلة للتطبيق: | مواد البوليمر / مواد بطارية الليثيوم / الراتنج |
| القوة: | الاستعداد: 50 واط ، استهلاك طاقة التشغيل: 1.2 كيلو وات | كفاءة الإنتاج: | حرك الخليط لمدة 1-5 دقائق حتى يتم القضاء على الفقاعات بحجم الميكرومتر تمامًا |
| إمدادات الطاقة: | AC220V ± 10 ٪ 、 50/60Hz | قابلية تطبيق المعدات: | يتم خلط العديد من السوائل المتدفقة مع المساحيق والمواد الصلبة ، ثم يتم تحريكها ، و defoamed ، وتفريق |
| جهاز التوازن: | موازن ثقل، جهاز حماية ميكانيكي بنابض سفلي، يمكنه العمل بثبات تحت أقصى اختلال توازن يبلغ 20 جرامًا | وظيفة السلامة: | الإغلاق التلقائي بسبب الفشل / الإغلاق عند فتح الغلاف / محطة الطوارئ |
| سعة تخزين البرنامج: | 20 مجموعة من البرامج ، تم تكوين كل مجموعة بشكل مستقل في 5 مراحل. يمكن ضبط كل مرحلة للوقت ، والسرعة ، | ||
| إبراز: | Centrifugal Mixer for Gel Degassing,Vacuum degassing centrifugal mixer,Gel degassing centrifugal mixer,Vacuum degassing centrifugal mixer,Gel degassing centrifugal mixer |
||

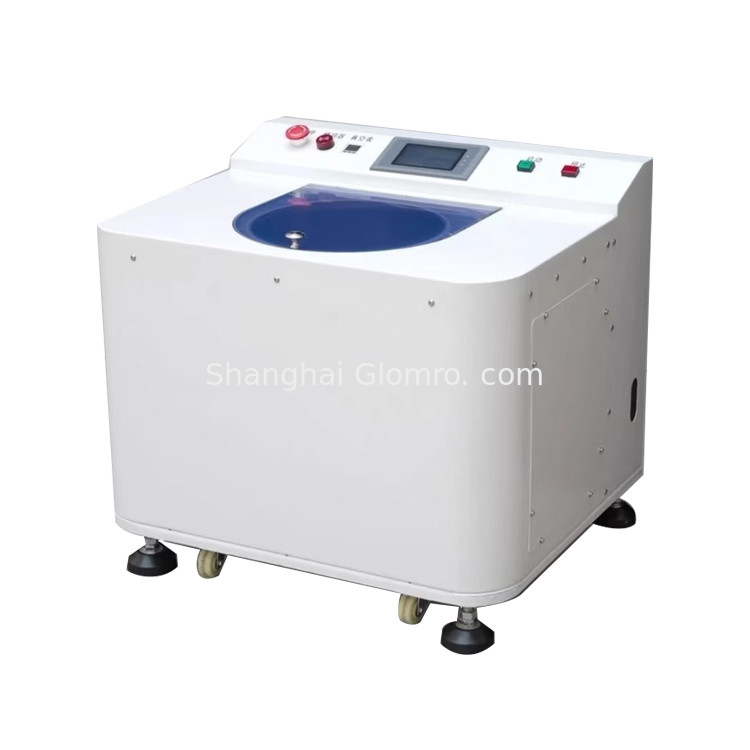

Vacuum Degassing Mixer
The container support cabinet is tilted 45 degrees with respect to the rotating axis.
It fixes the container containing the material on this support.
"Rotation (around the axis): clockwise circular movement (for defoaming)
"Self-rotation": counterclockwise rotation, rotating on the circular movement track with the center of the container as the axis (for mixing). The interaction of self-rotation and rotation causes vortices and up-down convection, expelling air bubbles from the material. During mixing and dispersion, no bubbles are mixed in.
| Model | BXT-BT-150 | BXT-BT-300 | BXT-BT-1L |
| Maximum stirring capacity (Customizable fixtures with different processing capacities) |
5ml-150ml*Single cup (With 300ml container) |
5ml-350ml*Double cups (With 600ml container) |
10ml-600ml*Double cups (With 1000ml container) |
| 1g-150gSingle cup (Dependent on the material density) |
1g-350g*Double cups (Dependent on the material density) |
10g-600g*Double cups (Dependent on the material density) |
|
| Compatible with syringes within the range of 3 to 30CC | Compatible with syringes within the range of 3 to 55CC | Compatible with syringes within the range of 5 to 200CC | |
| Work method | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode |
| Revolution speed | 200 - 2000RPM (adjustable) |
1- 3000RPM (adjustable) |
10 - 2500 RPM (adjustable) |
| Rotation speed | 200–2000 RPM (synchronized with orbital speed) | 1–3000 RPM (synchronized with orbital speed) |
10–2500 RPM (synchronized with orbital speed) |
| Orbital-rotational speed ratio | 1:1 (Not Optional) | 1:1 or separately adjustable by dual motors (optional) | |
| Running time | 0-30min(adjustable) | ||
| Working cavity | Single-chamber agitation | Dual-chamber agitation | |
| Machine size | 520*590*450(mm) | 580*450*620(mm) | 660*520*700(mm) |
| Weight | About 85kg | About 110kg | About 130kg |
| Vacuum degree | ﹣98kpa Cannot be adjusted/ Built-in oil-free vacuum device |
﹣101kpa Adjustable/ Built-in oil-free vacuum device |
|
| Applicable environment | Polymer materials / Lithium battery materials / Resin | Resin/Silicone/AB glue/Transparent glue/Powder + Glue | Silver paste / ink / slurry / hot molding body / medical aesthetics / encapsulation adhesive |
| Power | Standby: 50W, Operating power consumption: 1.2kW | Standby: 50W, Operating power consumption: 1.5kW | Standby: 50W, Operating power consumption: 2kW |
| Production efficiency | Stir the mixture for 1-5 minutes until the micrometer-sized bubbles are completely eliminated | Stir the mixture for 1-3 minutes until the micrometer-sized bubbles are completely eliminated | |
| Power supply | AC220V±10%,50/60HZ | ||
| Equipment applicability | Various flowing liquids are mixed with powders, solid materials, and are then agitated, defoamed, and dispersed. | ||
| Balance device | Weight counterweight, mechanical bottom spring protection device, can work stably under a maximum unbalance of 20g | Weight counterweight and mechanical bottom spring protection device, capable of stable operation under a maximum unbalance of 40g | |
| Safety function | Automatic shutdown due to failure / Shutdown upon opening the cover / Emergency stop | Door lock alarm, vibration alarm, vacuum alarm, overload alarm, work completion prompt, emergency stop switch | |
| Program storage capacity | 20 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity | 50 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity. | |
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
