| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | BAXIT |
| Model Number: | BXT-DALT6900/BXT-DALT6910 |
| Minimum Order Quantity: | 1 |
| الأسعار: | US$6,320-9,656 |
| Packaging Details: | Carton box/Wooden box |
| Delivery Time: | 5-8Working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10000pcs |
| Model: | BXT-DALT6900 | Flow Range: | Matrix：36-640m³/h Nozzle：4-36m³/h |
|---|---|---|---|
| Precision: | The reading is ±2.5% ± 0.1 m³/h | Resolution: | 0.01m³/h |
| Static pressure Range: | ±2500Pa | Temperature Range: | 0-60℃ |
| إبراز: | Pipeline air leakage testing machine,Pipe leak tester,Pipe leak tester |
||

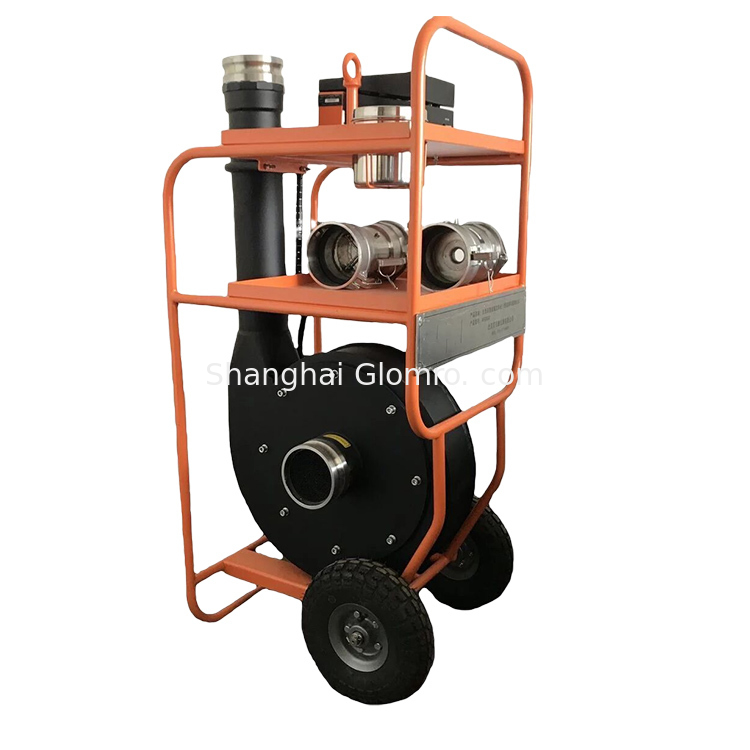

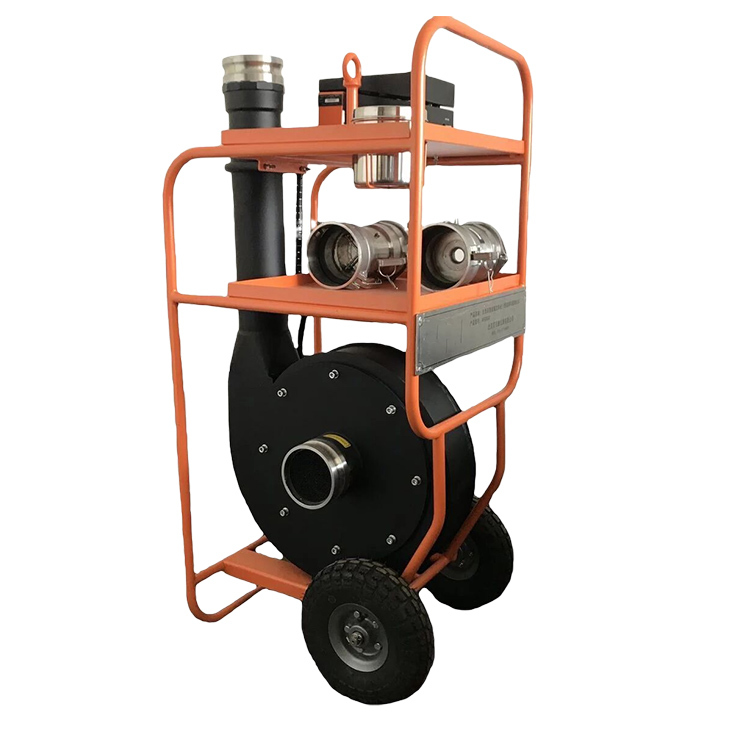

Pipe leakage air volume tester
The duct leakage testing machine is used for testing the leakage volume of air conditioning ducts, fire protection ducts and enclosed spaces. It can be used to test both segmented ducts and the total duct after the installation of the entire system, ensuring the working efficiency of the system and avoiding energy waste.
Technical Specifications
| Model | BXT-DALT6900 | BXT-DALT6910 | |
| Flow | Range | Matrix:36-640m³/h Nozzle:4-36m³/h | Small nozzle:4-70m³/h Large nozzle:70-1200m³/h |
| Precision | The reading is ±2.5% ± 0.1 m³/h | ||
| Resolution | 0.01m³/h | 0.01m³/h | |
| Static pressure | Range | ±2500Pa | ±4500Pa |
| Precision | The reading is ±1Pa, with an accuracy of 1%. | ||
| Resolution | 0.1Pa | 0.1Pa | |
| Temperature | Range | 0-60℃ | 0-60℃ |
| Precision | ±0.5℃ | ±0.5℃ | |
| Resolution | 0.1℃ | 0.1℃ | |
| Atmospheric pressure | Range | 70-130kPa | 70-130kPa |
| Precision | The reading is ±2% | ||
| Resolution | 0.1kPa | 0.1kPa | |
| Power supply | 100 - 120V single phase 16A / 220 - 240V single-phase 10A | 220V ± 10%, single phase, 50/60Hz, 16A | |
| Weight | 72KG | 63KG | |
| Size | 540*500*1200mm | 480*610*1045mm | |
| Storage | 1000 sets | 1000 sets | |
Packing & Delivery
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
