| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | BAXIT |
| رقم الموديل: | BXT-120DE/BXT-150DE/BXT-180DE/BXT-300DE/BXT-500DE/BXT-700DE/BXT-800DE |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | US $210.0 - 1475.0 / Unit |
| تفاصيل التغليف: | صندوق الكرتون/صندوق خشبي |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 1000pcs |
| نموذج: | BXT-800DE | طريقة التشغيل: | شاشة إل سي دي ٣،٢ بوصة |
|---|---|---|---|
| حجم الآلة: | 550*320*380 مللي متر | حجم الأخدود الداخلي: | 500 * 300 * 200 مم |
| قدرة التنظيف: | 30L | تردد الموجات فوق الصوتية: | 40 (كيلو هرتز) |
| إبراز: | industrial ultrasonic cleaning machine,high-power ultrasonic cleaner,large-scale ultrasonic cleaning equipment,high-power ultrasonic cleaner,large-scale ultrasonic cleaning equipment |
||

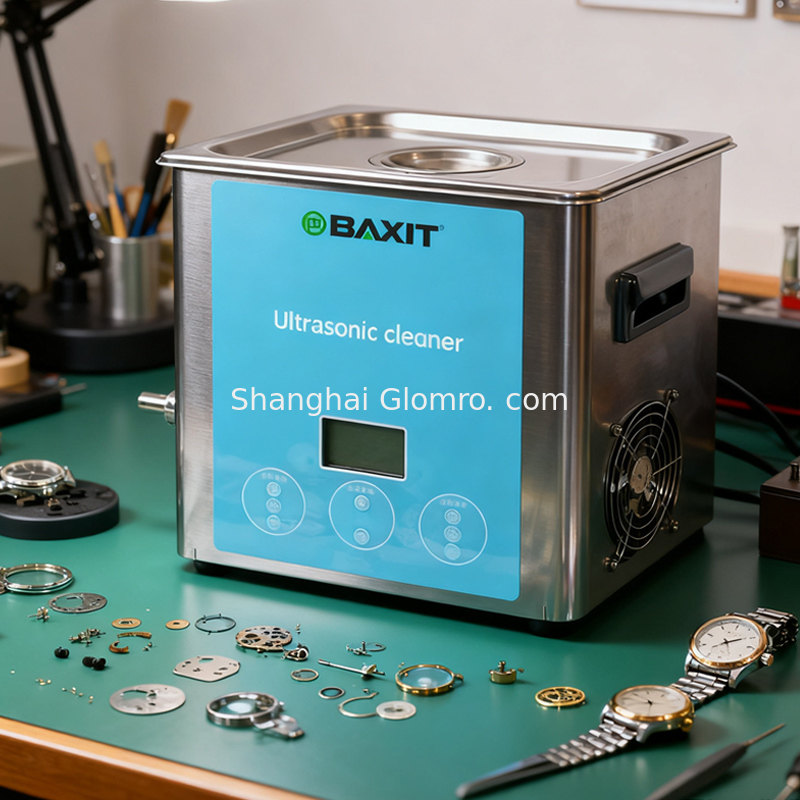

ultrasonic cleaner
In the modern cleaning field, ultrasonic cleaning machines, with their core advantages of "no blind spots, low damage and high efficiency", have gradually spread from industrial settings to medical, scientific research and daily life, becoming an important cleaning equipment to replace traditional manual wiping and high-pressure rinsing.
Working principle
The core working principle is to convert electrical energy into high-frequency mechanical vibration (typically at frequencies ranging from 20kHz to 100kHz) by an ultrasonic generator. When the vibration propagates through the liquid in the cleaning tank (such as water or a dedicated cleaning agent), countless tiny bubbles are generated. These bubbles are rapidly formed and burst under the action of the vibration energy, releasing a powerful impact force (i.e., the "cavitation effect"), which can penetrate into areas such as crevices and holes that are difficult to reach by traditional cleaning methods, effectively removing oil stains, dust, oxides, fingerprints and other dirt from the surface of the object.
Technical Specifications
| Model | BXT-120DE | BXT-150DE | BXT-180DE | BXT-300DE |
| Operating method | Liquid crystal display screen | 3.2-inch LCD display | ||
| Machine size | 260*160*280mm | 320*175*280mm | 320*175*340mm | 320*270*340mm |
| Inner groove size | 240*150*100mm | 300*150*100mm | 300*150*100mm | 300*240*150mm |
| Cleaning capacity | 3L | 4L | 6L | 10L |
| Ultrasound frequency | 40(KHZ) | |||
| Ultrasound/degassing power | 120W | 150W | 180W | 300W |
| Adjustable ultrasonic power | 0-100% | |||
| Heating power | 200W | 180W | 200W | 500W |
| Temperature range | 0-99℃ | |||
| Time adjustable | 0-999min | |||
| operating times | Continuous operation (adjustable settings) | |||
| Inner liner | 304 stainless steel | |||
| Model | BXT-500DE | BXT-700DE | BXT-800DE | BXT-1200DE |
| Operating method | 3.2-inch LCD display | |||
| Machine size | 350*320*340mm | 530*320*380mm | 550*320*380mm | 550*320*500mm |
| Inner groove size | 330*300*150mm | 500*300*150mm | 500*300*200mm | 500*300*300mm |
| Cleaning capacity | 15L | 22.5L | 30L | 45L |
| Ultrasound frequency | 40(KHZ) | |||
| Ultrasound/degassing power | 500W | 700W | 800W | 1200W |
| Adjustable ultrasonic power | 10-100% | 0-100% | 10-100% | |
| Heating power | 500W | 700W | 800W | 1200W |
| Temperature range | 0-99℃ | |||
| Time adjustable | 0-999min | |||
| operating times | 999 times(adjustable settings) | |||
| Inner liner | 304 stainless steel | |||
Product structure
Applicable scenarios
Effect Comparison
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
